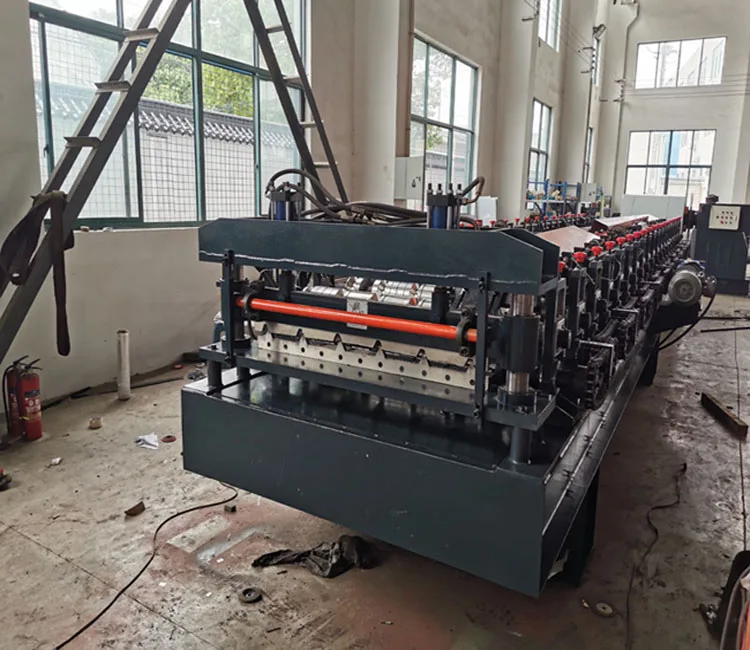

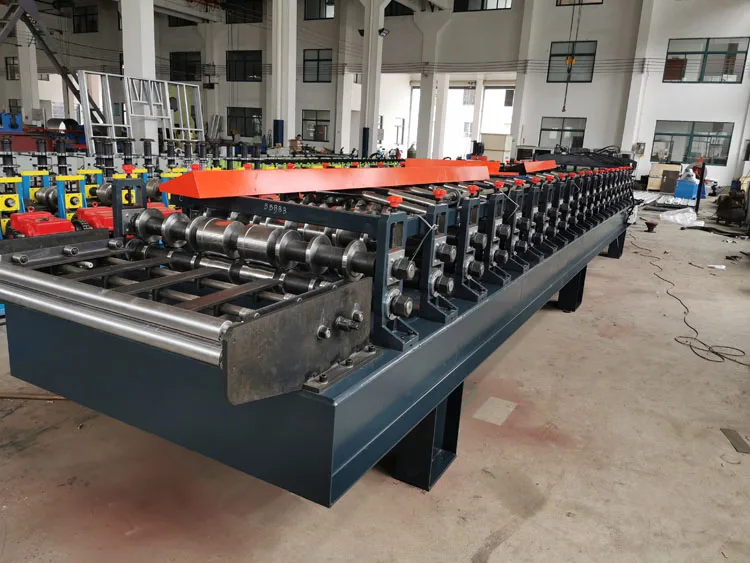

Full Automatic Trapezoidal Metal Roof Tile Making Machine Roll Forming Machine

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Words From Our Hearts
We're manufacturer
We only do high-quality machines and we expect to establish long-term cooperation with you.

1. CE&ISO&SGS Certification 2. Customization Accepted 3. High Stability and Precision
4. Famous Brand Control System(PLC: Panasonic, Transducer: Yaskawa, Encoder: Omron, Electronics: Schneider)
Product Overview
No.
Item
Parameter
1
Working speed
12-20 m/min
2
Raw material
0.3-0.8 mm Colored steel(according to customer's requirement)
3
Dimension
About 8*1.6*1.2m
4
Weight
About 5 T
5
Roller stations
18
6
Roller material
GCr 15
7
Shaft
45# steel, φ76mm
8
Driving method
By chain 1.2 inch
No.
Component
Quantity
Remark
1
Decoiler
1 set
Bearing capacity: 5 T
2
Guiding
1 set
3
Roll forming
1 set
18 stations, 11kw
4
Hydraulic cutting
1 set
4kw
5
Out table
2 sets
2 meters each
6
Hydraulic station
1 set
7
PLC controller
1 set
8
Spare parts&tools
1 box
Customer Visits and Exhibition
Packing∇ivery
Standard package with film, plastic and steel wire.

FAQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.

2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

3. You are trade company or factory?
We are Manufacturer.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.

6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.

7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.

8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
