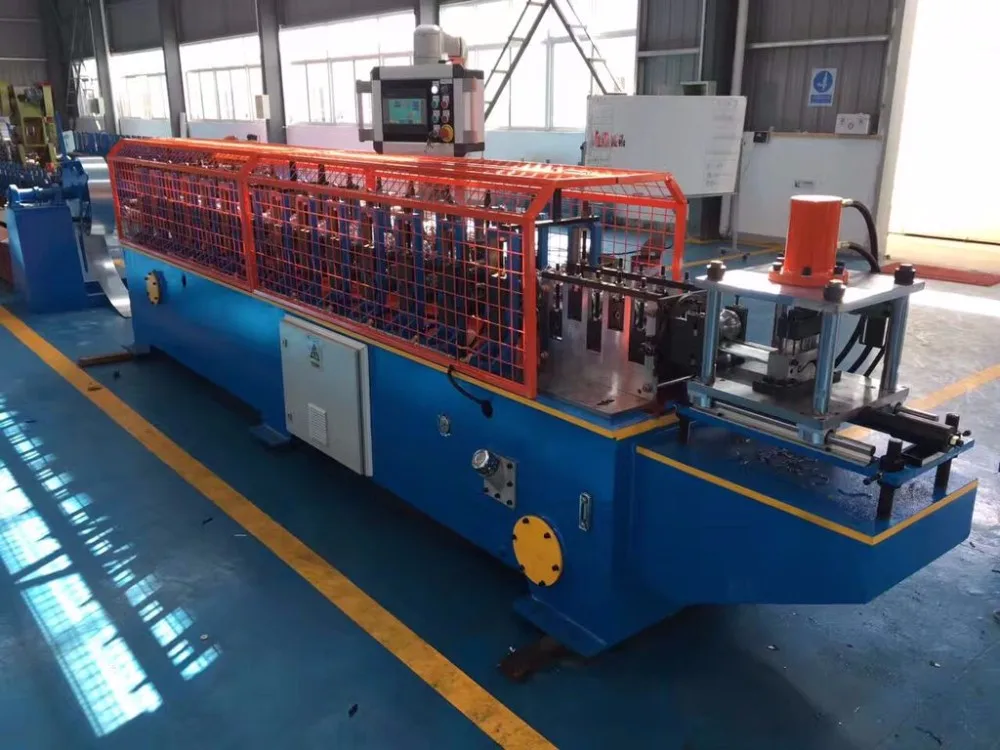

Galvanized Metal Door Machine Twin Lath Roller Shutter Slat Roll Forming Machinery

Metal Roller Shutter Door Making Machine, Rolling Shutter Strip Making Machine, Aluminum Roller Shutter Door Roll Forming Machine

Main Specifications

Working flow

De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

Machine component

3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg

Leveling device

1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm

Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW

Hydraulic Cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm

Control Box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)

Output Table

Length : 2m
Quantity: 2 units

Standard Profile and Drawing

Our machines

Application

Package

Customers

Company Information

Wuxi Suhang Machinery manufacturing Co., Ltd. is specialized in building materials of light steel structure.

Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking

roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine,

Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,

Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects,

Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Suhang machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation

and advantageous location which supply good business opportunities for the buyers home and abroad.
